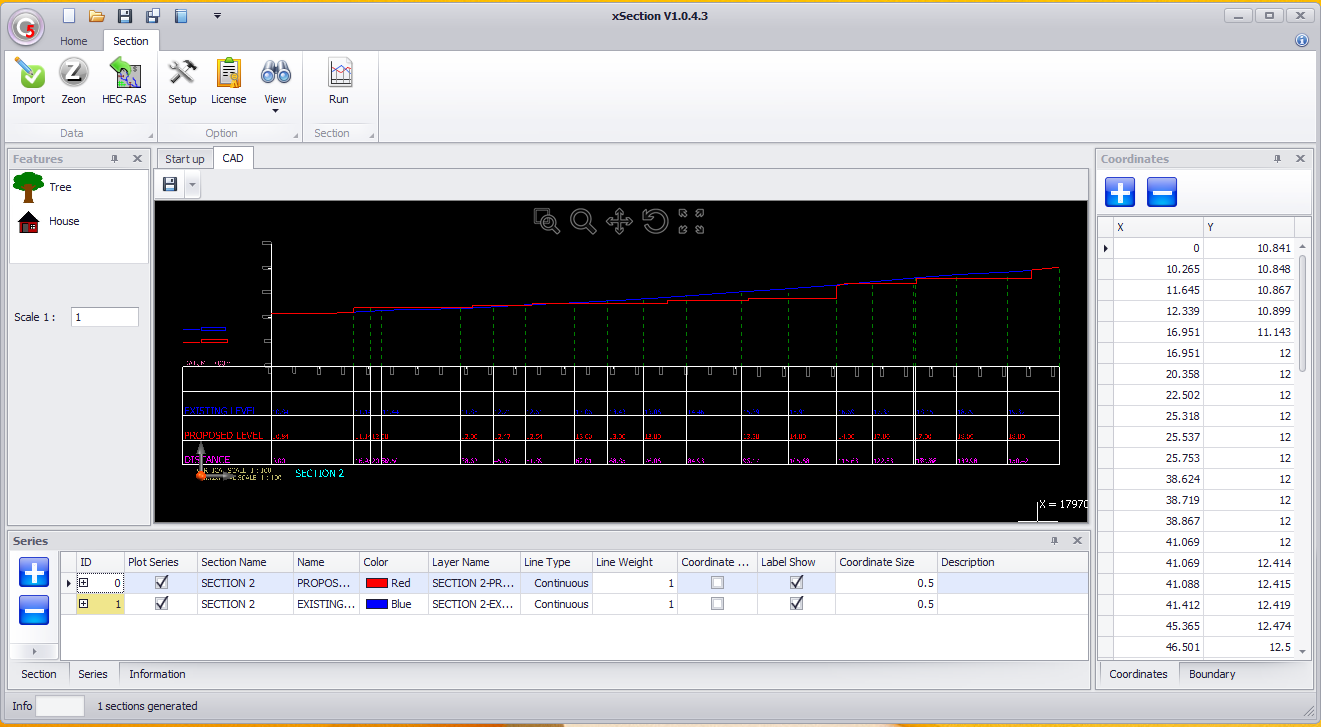

• "Cross section user interface"

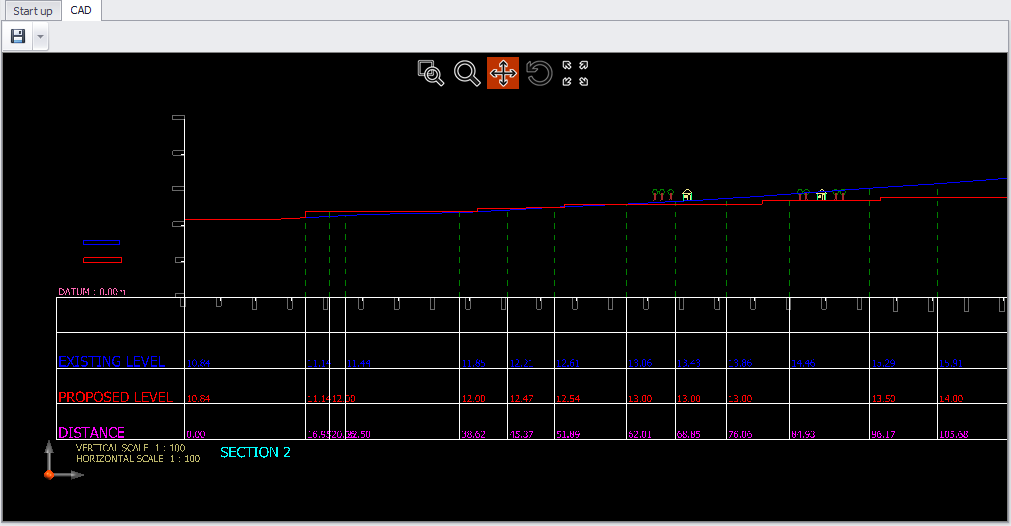

  • "Cross section in 2D drawing"

Cross-Section

Cross section design V1.O (xSection) is first generation of cross section design. This application is for user to draw cross section in easy way instead of using CAD application. Besides, xSection can also extract profile data from our Zeon Earth, Sewer+ and Drain+ or other third parties products such as Hec-Ras application

The xSection allows you to enhance cross section drawn by addon features. It can be customization based on addon requirements such as Tree component.

Besides, cross section has features such as vertical and horizontal scale, layers, row contents, ruler marking etc

Features:

  • Generate section drawing
  • Import data from Zeon Earth,Aquator, Drain+, Sewer+, Zeon Storm
  • Import data from Hec-Ras application
  • Add features
  • Direct editing level
  • Work independent without AutoCad application
  • Layer off/on for xSection entities
  • User interface can be edited
  • User can add more than two series
  • File can save in dwg format


Purchase here.

  • Free upgrade for 1 year
  • Free email technical support 1 year
  • Free update for 1 year
  • Software activation
Buy
